VARIABLE-REACH TOP LOADING ARMS AND UNLOADING ARMS

For loading multi-compartment tankers

For completing loading and unloading operations from multiple manholes
Specially for top loading and unloading from a single connection point

Strengths and specificities

  • For loading and unloading fluids by accessing multiple manholes without having to move the truck
  • Connection by coupling on the top of the tanker (ERC coupling, flanges, camlock)
  • A technical loading arm that can be adapted to all types of tankers (including ISO containers)
  • Available in an automated version on all the axes on request

Conditions of use

The conditions of use depend on several factors (installation environment of the arms, service conditions and fluid characteristics). Let's find the right loading arm for you: send us your SDS (safety data sheets).

STANDARD TECHNICAL CHARACTERISTICS OF THE VARIABLE-REACH LOADING ARM and unloading arm

  • Steel or stainless steel construction as standard
  • Balancing using gas-spring compensators as standard
  • “Arm on the right”/“arm on the left” orientation according to your installation
  • Version that is fastened to the ground or a support beam, or a hanging version
  • Top or bottom side feed

OPTIONAL EQUIPMENT AVAILABLE

  • Fastened with a support bracket
  • Pneumatic assistance (helps with handling the loading arm) and remote control with reinforced sleeve
  • Vacuum breaker
  • Drip box
  • Single butterfly valve or double offset butterfly valve
  • Ball valve
  • Remotely controlled valve opening/closing control
  • Drain valve
  • Locking in storage position
  • Position detector
  • Electric tracing or double jacket heating of the arm (heat-transfer fluids)
  • Couplers for the connection to the top of the tanker
  • Emergency disconnector
  • Specific paint finish
  • Specific coatings on request
  • Atex archiving

FDA compatibility (food applications) available on request - Specify ATEX zoning if applicable - CE marking for pneumatic, electrical equipment, or equipment used in ATEX zone - Specify if the loading arm is subject to the EU pressure equipment directive

Are gangways or folding stairs already installed on site? Beware of the risk of incompatibility between the existing gangway and the loading arm to be installed. Pacquet develops and designs all-inclusive loading systems with arms and tanker top access gangways. More information from our teams.



Configuration examples

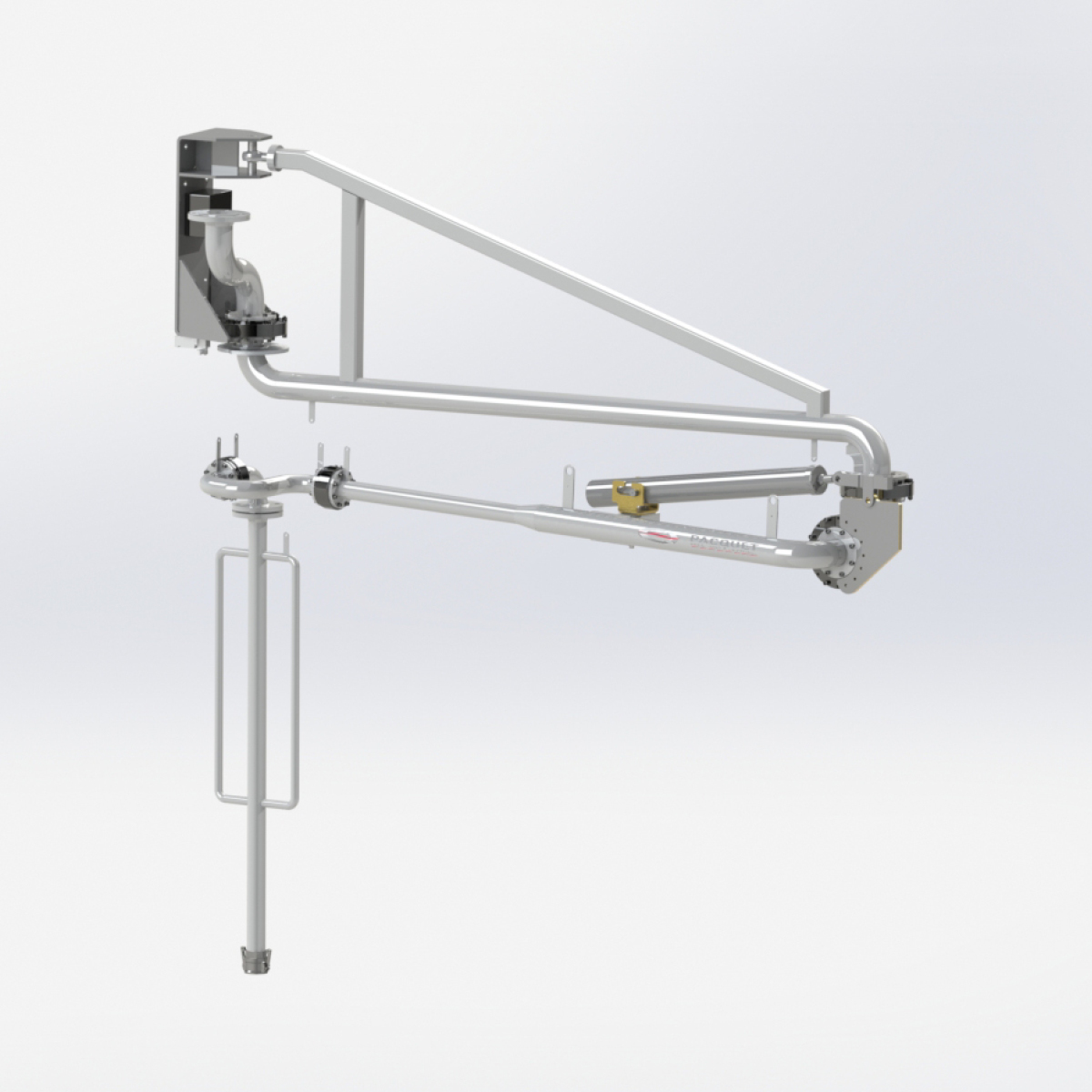

Variable-reach top loading arm, Pacquet

Variable-reach top loading arm

Presented here with coupler for connection to the top of the tanker

Variable-reach top loading arm and connection coupler, Pacquet

Variable-reach top loading arm and connection coupler

Presented here with coupler for connection to the top of the tanker

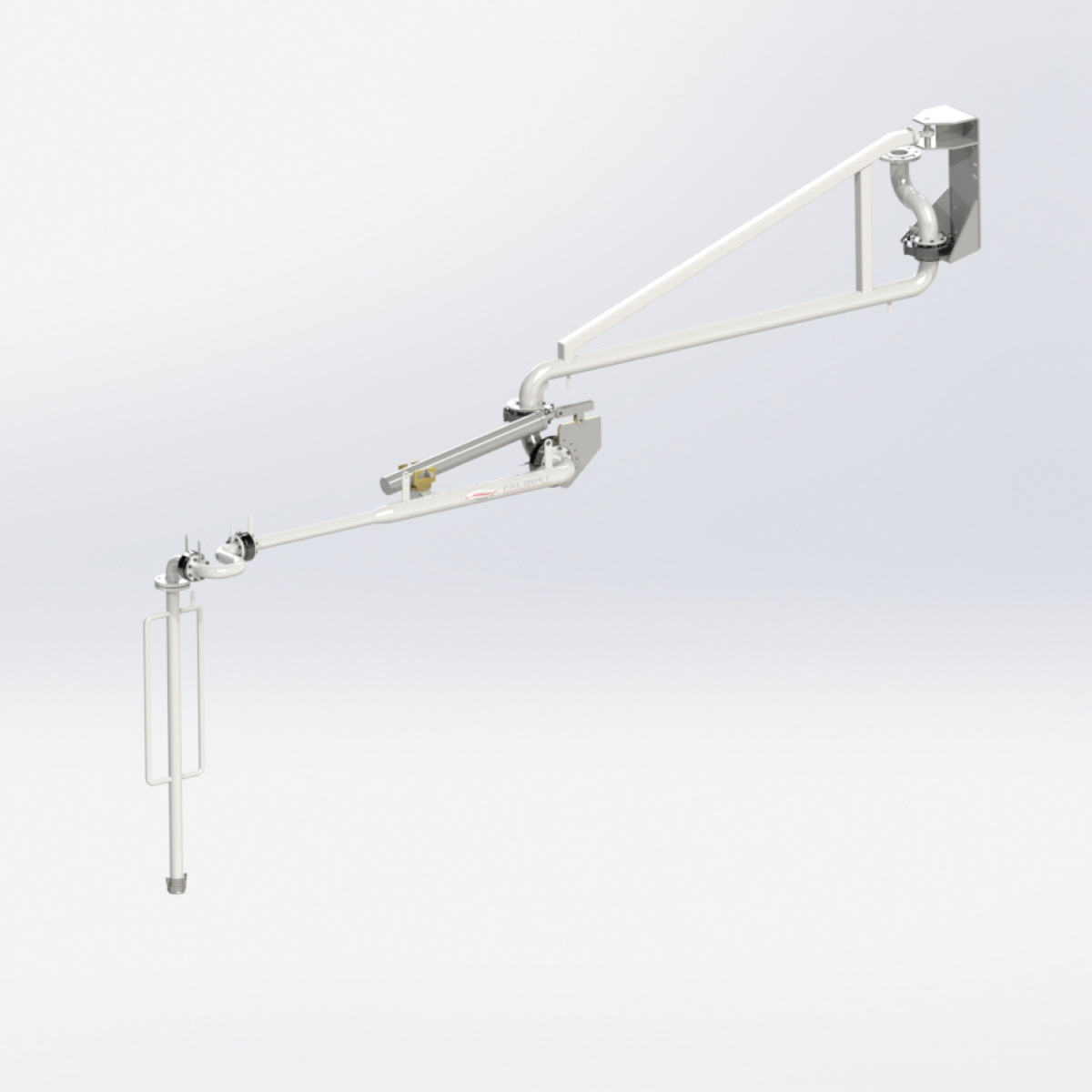

Variable-reach top loading arm, Pacquet

Variable-reach top unloading arm, Pacquet

Presented here with coupler for connection to the top of the tanker

Variable-reach top loading arm, Pacquet

Variable-reach top loading arm

Presented here with coupler for connection to the top of the tanker
